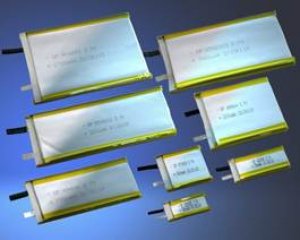

A leader in the design, integration, and manufacture of custom battery packs and battery chargers, GlobTek provides a wide range of UL1642-approved Lithium Ion (Li-Ion) Cells. By integrating a UL1642 approved cell into a battery pack, further compliance with UL2054, IEC 62133, IEC 61982 and most other standards are a superior choice to using a non-Approved cell. GlobTek uses a host of quality manufacturer’s cells in battery pack design and production, depending on customer requirements.

Battery packs can be assembled from cells made by internationally recognized brands or from lower cost, lesser known Chinese manufacturers based on customer requirements and application demands. Popular brands include:

We can source and buy any customer specified battery or can help select based on requirements.

Search UL1642 Approved Li-Ion (Lithium Ion) Cells

Capacity:

Dimensions:

UL1642 Approved Li-Ion (Lithium Ion) Cells

APPROXIMATE COMPOSITION/INFORMATION ON INGREDIENTS FOR GLOBTEK LiCoO2 Cells
model numbersecondary typeul1642 test complianceCapacitydimensions length x width x thickness mm (max)
gp403040Lithium ion (Pouch)Complies with all single cell tests240 mAh40 x 30 x 4.0
gp502030Lithium ion (Pouch)Complies with all single cell tests250 mAh30 x 20 x 5.0
gp621738Lithium ion (Pouch)Complies with all single cell tests350 mAh38 x17 x6.2
gp452050Lithium ion (Pouch)Complies with all single cell tests400 mAh50 x 20 x 4.5
gp453038Lithium ion (Pouch)Complies with all single cell tests450 mAh38 x 30 x 4.5
gp453040Lithium ion (Pouch)Complies with all single cell tests490 mAh40 x 30 x 4.5
gp622535Lithium ion (Pouch)Complies with all single cell tests500 mAh35 x25 x 6.2
gp322970Lithium ion (Pouch)Complies with all single cell tests550 mAh70 x 29 x 3.2
gp413443Lithium ion (Pouch)Complies with all single cell tests560 mAh43 x 34 x 4.1
gp383450Lithium ion (Pouch)Complies with all single cell tests650 mAh50 x 34 x 3.8
gp553437Lithium ion (Pouch)Complies with all single cell tests650 mAh37 x34 x 5.5
gp603040Lithium ion (Pouch)Complies with all single cell tests680 mAh40 x30 x 6.0
gp602065Lithium ion (Pouch)Complies with all single cell tests740 mAh65 x20 x 6.0
gp503048Lithium ion (Pouch)Complies with all single cell tests750 mAh48 x30 x 5.0
gp603443Lithium ion (Pouch)Complies with all single cell tests800 mAh43 x34 x 6.0
gp383562Lithium ion (Pouch)Complies with all single cell tests820 mAh62 x 35 x 3.8
gp503450Lithium ion (Pouch)Complies with all single cell tests900 mAh50 x34 x 5.0
gp803040Lithium ion (Pouch)Complies with all single cell tests950 mAh40 x 30 x 8.0
gp404255Lithium ion (Pouch)Complies with all single cell tests except the impact test1000 mAh55 x 42 x 4.0
sr524148Lithium ion (Pouch)complies with all single cell tests except the impact and crush test1000 mAh48 x 41 x 5.2
gp503759Lithium ion (Pouch)Complies with all single cell tests1050 mAh59 x37 x 5.0
gp482970Lithium ion (Pouch)Complies with all single cell tests1100 mAh70 x 29 x 4.8
gp724040Lithium ion (Pouch)Complies with all single cell tests except the impact test1200 mAh40 x 40 x 7.2
gp454362Lithium ion (Pouch)Complies with all single cell tests1300 mAh62 x 43 x 4.5
gp822855Lithium ion (Pouch)Complies with all single cell tests1350 mAh55 x 28 x 8.2
gp423382Lithium ion (Pouch)Complies with all single cell tests1400 mAh82 x 23 x 4.2
gp325385Lithium ion (Pouch)Complies with all single cell tests except the impact test1500 mAh85 x 53 x 3.2
gp455068Lithium ion (Pouch)Complies with all single cell tests except the impact test1600 mAh68 x 50 x 4.5
gp583475Lithium ion (Pouch)Complies with all single cell tests1600 mAh75 x34 x 5.8
gp823456Lithium ion (Pouch)Complies with all single cell tests1750 mAh56 x 34 x8.2
gp1003450Lithium ion (Pouch)Complies with all single cell tests1800 mAh50 x 34 x 10
gp525068Lithium ion (Pouch)Complies with all single cell tests except the impact test1800 mAh68 x50 x 5.2
gp753465Lithium ion (Pouch)Complies with all single cell tests1850 mAh65 x 34 x 7.5
gp563496Lithium ion (Pouch)Complies with all single cell tests except the impact test1900 mAh96 x34 x 5.6
gp456074Lithium ion (Pouch)Complies with all single cell tests1950 mAh74 x 60 x 4.5
gp554858Lithium ion (Pouch)Complies with all single cell tests1950 mAh58 x48 x 5.5
gp634070Lithium ion (Pouch)Complies with all single cell tests2000 mAh70 x 40 x6.3
gp903852Lithium ion (Pouch)Complies with all single cell tests2000 mAh52 x 38 x 9.0
gp756074Lithium ion (Pouch)Complies with all single cell tests2100 mAh74 x 60 x 7.5
gp455085Lithium ion (Pouch)Complies with all single cell tests2200 mAh85 x 50 x 4.5
gp604570Lithium ion (Pouch)Complies with all single cell tests2200 mAh70 x45 x 6.0
gp925050Lithium ion (Pouch)Complies with all single cell tests2200 mAh50 x 50 x9.2
gp5440104Lithium ion (Pouch)Complies with all single cell tests except the impact test2400 mAh104 x40 x 5.4
gp654086Lithium ion (Pouch)Complies with all single cell tests2500 mAh86 x40 x6.5
gp784863Lithium ion (Pouch)Complies with all single cell tests2500 mAh63 x 48 x7.8
gp844858Lithium ion (Pouch)Complies with all single cell tests except the impact test2500 mAh58 x48 x8.4
gp606168Lithium ion (Pouch)Complies with all single cell tests except the impact test2600 mAh68 x61 x 6.0
gp3565120Lithium ion (Pouch)Complies with all single cell tests3000 mAh120 x 65 x 3.5
gp6050100Lithium ion (Pouch)Complies with all single cell tests3000 mAh100 x50 x 6.0
gp705573Lithium ion (Pouch)Complies with all single cell tests3000 mAh73 x 55 x7.0
gp804969Lithium ion (Pouch)Complies with all single cell tests except the impact test3000 mAh69 x 49 x8.0
gp854678Lithium ion (Pouch)Complies with all single cell tests3000 mAh78 x 46 x8.5
gp925060Lithium ion (Pouch)Complies with all single cell tests except the impact test3000 mAh60 x 50 x 9.2
gp4265125Lithium ion (Pouch)Complies with all single cell tests3200 mAh125 x 65 x 4.2
gp4345135Lithium ion (Pouch)Complies with all single cell tests except the impact test3200 mAh135 x 45 x 4.3
gp5449118Lithium ion (Pouch)Complies with all single cell tests3200 mAh118 x49 x 5.4
gp438384Lithium ion (Pouch)Complies with all single cell tests3400 mAh84 x 83 x 4.3
gp457590Lithium ion (Pouch)Complies with all single cell tests3500 mAh90 x 75 x 4.5
gp607080Lithium ion (Pouch)Complies with all single cell tests3800 mAh80 x70 x6.0
gp3581117Lithium ion (Pouch)Complies with all single cell tests4000 mAh117 x 81 x 3.5
gp3660165Lithium ion (Pouch)Complies with all single cell tests4000 mAh165 x 60 x 3.6
gp4575100Lithium ion (Pouch)Complies with all single cell tests4000 mAh100 x 75 x 4.5
gp835085Lithium ion (Pouch)Complies with all single cell tests except the impact test4000 mAh85 x 50 x8.3
gp925176Lithium ion (Pouch)Complies with all single cell tests except the impact test4000 mAh76 x 51 x 9.2
gp596193Lithium ion (Pouch)Complies with all single cell tests except the impact test4200 mAh93 x61 x 5.9
gp6560106Lithium ion (Pouch)Complies with all single cell tests4500 mAh106 x 60 x6.5
gp696483Lithium ion (Pouch)Complies with all single cell tests4500 mAh83 x 64 x 6.9
gp905385Lithium ion (Pouch)Complies with all single cell tests except the impact test5100 mAh85 x 53 x 9.0
